Solid Top Single Seal Manhole Frame

Model: MD B125
These seals are designed for high viscosity purpose and for abrasive services, where solid accumulation is possible as they are self cleaning hard face combination. Our Solid Top Single Seal Manhole Frame MD B125 guarantees quality workmanship that begins with start-up and continues throughout the life of the system.

Send Enquiry

Features :

Manufacturing standard: BS EN 124
Material: S.G.Iron (Grade 500/7 as per ISO 1083)
High strength with low weight
Single Seal for odour prevention
Suitable for car parking desk
Black Bitumin coated

Options :

Epoxy coating
Customised Badging
Customised checker design
Available as per different International standards also

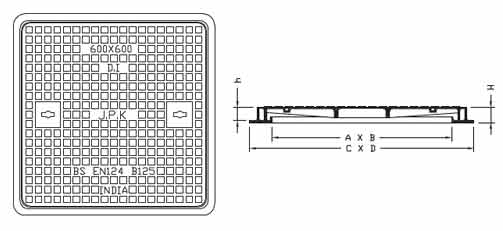

Product Code	Clear Opening A X B(mm)	Base Size C X D(mm)	Depth of Frame H(mm)	Depth of Seating h(mm)	Class
JPSS3030B	300 X 300	400 X 400	43	37	B 125
JPSS4545B	450 X 450	560 X 560	43	37	B 125
JPSS6060B	600 X 600	710 X 710	43	37	B 125
JPSS7575B	750 X 750	860 X 860	45	37	B 125
JPSS7560B	750 X 600	860 X 710	45	37	B 125

Applications :

In residential areas, on foot paths and between heavy traffic roads
