Circular Manhole Cover

We offer our clients an exclusive range of Circular Cover Single Seal Manhole Frame. These seals are precision designed and produced by using high grade raw material. They are very durable and highly efficient.

Send Enquiry

Features :

Manufacturing standard: BS EN 124
Material: S.G.Iron (Grade 500/7 as per ISO 1083)
High strength with low weight
Single Seal for odour prevension
Available with medium and heavy traffic load
Black Bitumin coated

Options :

Epoxy coating
Customised checker design
Customised Badging
Available as per different
International standards also

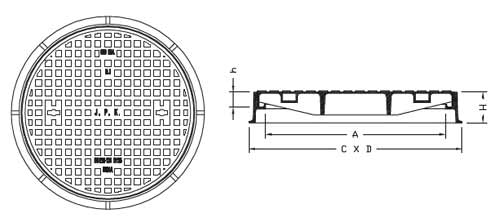

Product Code	Clear Opening A X B(mm)	Base Size C X D(mm)	Depth of Frame H(mm)	Depth of Seating h(mm)	Class
JPRR60B	600 DIA	720 DIA	50	45	B 125
JPRR67B	675 DIA	795 DIA	50	45	B 125
JPRR60C	600 DIA	720 DIA	55	50	C 250
JPRR67C	675 DIA	795 DIA	55	50	C 250
JPRR60D	600 DIA	750 DIA	100	50	D 400
JPRR67D	675 DIA	825 DIA	100	50	D 400

Applications :

In residential areas, on foot paths and between heavy traffic roads
