We offer a qualitative range of Iron Flanged Spigot, Industrial Flanged Spigot that is
resistant to cracks, wear & tear and fire. We fabricate our range with
quality material and monitor the whole range on required dimension, weight,
fettling, machining, testing of load, pressure etc. Furthermore, our range
is very reliable and cost-effective.
Features :
- Manufacturing Standard IS 9523 / ISO 2531 / EN545
- Material: S.G. Iron
- Powder Coating / Epoxy Coating
|

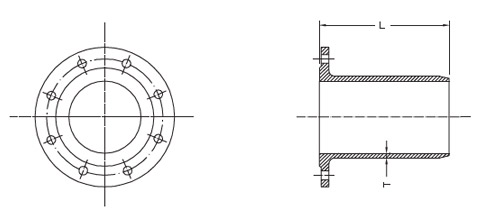

| DN |
T |
L |
| 80 |
7.0 |
350 |
| 100 |
7.2 |
360 |
| 150 |
7.8 |
380 |
| 200 |
8.4 |
400 |
| 250 |
9.0 |
420 |
| 300 |
9.6 |
440 |
| 350 |
10.2 |
460 |
| 400 |
10.8 |
480 |
| 500 |
12.0 |
520 |
| 600 |
13.2 |
560 |
Applications :
- Water Industry
- Pressure Pipe and Fittings
©
