Flange PN-10

We offer a wide range of Flange PN-10, Flange Pipe Fitting that is initially developed for use on small sized high pressure piping. These are exquisitely designed and produced using high grade raw material. The internal pocket of this flange allows smooth bore and better fluid flow. Our clients can avail this range at market leading prices.

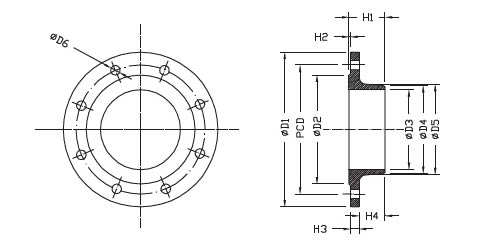

Nominal DIA DN	D1	D2	D3	D4	D5	D6	PCD	H1	H2	H3	H4	No of Hole
80	200	132	92	117	120	19	160	54	3	16	35	8
100	220	156	112	137	140	19	180	57	3	16	38	8
125	250	184	138	166	170	19	210	60	3	16	41	8
200	340	266	215	241	246	23	295	66	3	17	46	8
250	395	319	267	293	298	23	350	71	3	19	49	12
300	445	370	318	343	348	23	400	76	4	20	52	12
350	505	429	369	395	408	23	460	96	4	20	72	16
400	565	480	420	446	456	28	515	100	4	20	76	16
500	670	582	522	546	559	28	620	123	4	22	97	20
600	780	682	624	648	658	31	725	130	5	25	100	20
