Channel Grating
We offer a comprehensive range of
Channel Gratings that is exquisitely
designed to ensure longer service life. This floor drainage system with
channel kind of structure is used for fast flow of surface water. The
channels are running long in length and are simple & easy to install.
They are widely used on public places like: docks, airports, taxiways,
factories and plants. Moreover, they are used on huge gates to prevent
flooding of water and to prevent entry of creeping animals.
Features :
- Manufacturing standard: BS EN 124
- Material: S.G.Iron (Grade 500/7 as per ISO 1083)
- High strength with low weight
- Available for medium and heavy duty
- Black Bitumin coated
|
OPTIONS :
- Epoxy coating
- Available as per different
- International standards also
- Bolting arrangement of grate with the rail
|

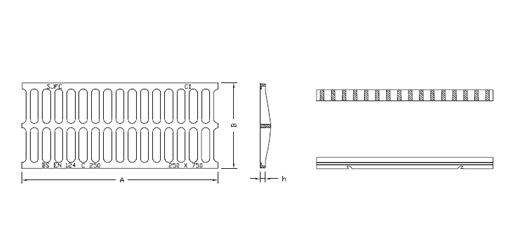

Product Code |
Length
A(mm) |
Width
B(mm) |
Depth of Rail
H(mm) |
Depth of Insertion
h(mm) |
Class |
JPCG7520B |
750 |
200 |
30 |
25 |
B 125 |
JPCG7525B |
750 |
250 |
30 |
25 |
B 125 |
JPCG7530B |
750 |
300 |
30 |
25 |
B 125 |
JPCG7520C |
750 |
200 |
65 |
55 |
C 250 |
JPCG7525C |
750 |
250 |
65 |
55 |
C 250 |
JPCG7530C |
750 |
300 |
65 |
55 |
C 250 |
JPCG7520D |
750 |
200 |
100 |
90 |
D 400 |
JPCG7525D |
750 |
250 |
100 |
90 |
D 400 |
JPCG7530D |
750 |
300 |
100 |
90 |
D 400 |
JPCG7560D |
750 |
600 |
100 |
90 |
D 400 |
Applications :
- In Drainage System
- Construction Industry
