Home » Iron Gratings » Gully Grating

Gully Grating


We offer a wide range of Gully Gratings, Iron Gully Grating, which exhibits extraordinary strength and provides excellent corrosion resistance. Our range of Gratings is easy to maintain, light in weight and appreciated for its durability & low maintenance. These gratings have large open area for water ways, and are available for medium and heavy traffic load both. Further, considering the budgetary constraints of the customers, we provide our range of Gratings at market leading prices.


Gully Grating    Gully Grating




Features :
  • Manufacturing standard: BS EN 124
  • Material: S.G.Iron (Grade 500/7 as per ISO 1083)
  • High strength with low weight
  • Prising slot for easy opening
  • Available for medium and heavy traffic load
  • Large open area for water ways
  • Black Bitumin coated
OPTIONS :
  • Epoxy coating
  • Hinge provision
  • Available as per different
  • International standards also

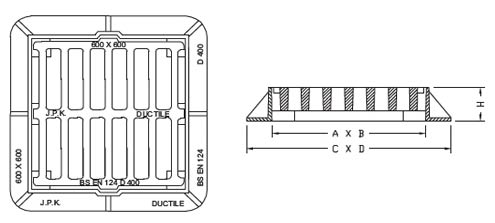

Gully Grating

Product Code Clear Opening
A X B(mm)
Base Size
C X D(mm)
Depth of Frame
H(mm)
Class
JPFG3030B 300 X 300 380 X 380 45 B 125
JPFG4545B 450 X 450 530 X 530 45 B 125
JPFG6060B 600 X 600 680 X 680 45 B 125
JPFG3030C 300 X 300 400 X 400 65 C 250
JPFG4545C 450 X 450 550 X 550 65 C 250
JPFG6060C 600 X 600 700 X 700 65 C 250
JPFG3030D 300 X 300 400 X 400 100 D 400
JPFG4545D 450 X 450 550 X 550 100 D 400
JPFG6060D 600 X 600 700 X 700 100 D 400

Applications :
  • In Drainage System
  • Loading Areas
  • Docks
  • Carriage Ways
  • Pedestrian Areas
  • Kerb Areas
  • Car Parks
