Solid Top Single Seal Manhole Frame

Model: HD C250
We provide our clients with a qualitative range of Solid Top Single Seal Manhole Frame HD C250 that is designed by experts keeping in mind the various factors like odour prevention, heavy traffic load bearing capacity. Our seals have high strength with low weight.

Send Enquiry

Features :

Manufacturing standard: BS EN 124
Material: S.G.Iron (Grade 500/7 as per ISO 1083)
High strength with low weight
Single Seal for odour prevention
Suitable for Heavy traffic load at Road Gully
Black Bitumin coated

Options :

Epoxy coating
Customised Badging
Customised checker design
Available as per different
International standards also

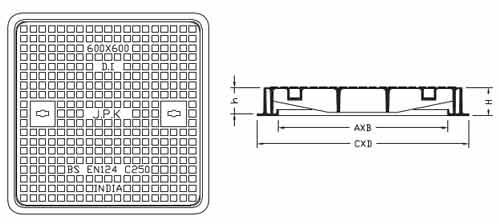

Product Code	Clear Opening A X B(mm)	Base Size C X D(mm)	Depth of Frame H(mm)	Depth of Seating h(mm)	Class
JPSS3030C	300 X 300	420 X 420	55	50	C 250
JPSS4545C	450 X 450	570 X 570	55	50	C 250
JPSS6060C	600 X 600	730 X 730	73	62	C 250
JPSS6060CL	600 X 600	706 X 706	55	50	C 250

Applications :

In residential areas, on foot paths and between heavy traffic roads
