Solid Top Single Seal Manhole Frame

Model: EHD D400
We offer our clients an entire range of Solid Top Single Seal Manhole Frame EHD D400 that is made by using high grade raw material. These tops not only prevent bad odour bus also provide safety to pedestrians and other vehicles.

Send Enquiry

Features :

Manufacturing standard: BS EN 124
Material: S.G.Iron (Grade 500/7 as per ISO 1083)
High strength with low weight
Single Seal for odour prevention
Suitable for Heavy traffic load
Black Bitumin coated

Options :

Epoxy coating
Customised Badging
Customised checker design
Available as per different
International standards also

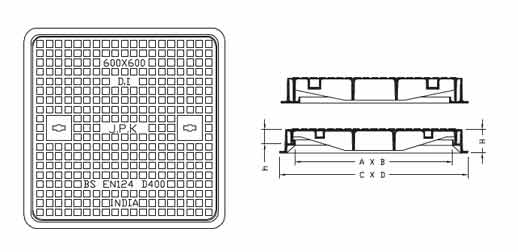

Product Code	Clear Opening A X B(mm)	Base Size C X D(mm)	Depth of Frame H(mm)	Depth of Seating h(mm)	Class
JPSS3030D	300 X 300	420 X 420	100	50	D 400
JPSS4545D	450 X 450	570 X 570	100	92	D 400
JPSS6060D	600 X 600	710 X 710	100	92	D 400
JPSS6060DL	600 X 600	720 X 720	100	50	D 400

Applications :

In residential areas, on foot paths and between heavy traffic roads
