Solid Top Double Seal Manhole Frame

Model: MD B125
Our company is involved in manufacturing and supplying a qualitative range of Solid Top Double Seal Manhole Frame (Model: MD B125), which is manufactured using best grade metal. Furthermore, these are designed as per the international standards. This solid top is provided with double seal for bad odour prevention and ideal for car parking desk.

Send Enquiry

Features :

Manufacturing standard: BS EN 124
Material: S.G.Iron (Grade 500/7 as per ISO 1083)
High strength with low weight
double Seal for odour prevention
Suitable for light traffic load
Black Bitumin coated

Options :

Epoxy coating
Customised Badging
Customised checker design
Available as per different International standards also

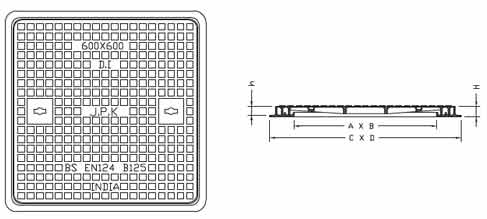

Product Code	Clear Opening A X B(mm)	Base Size C X D(mm)	Depth of Frame H(mm)	Depth of Seating h(mm)	Class
JPDS3030B	300 X 300	460 X 460	43	37	B 125
JPDS4545B	450 X 450	610 X 610	43	37	B 125
JPDS6060B	600 X 600	800 X 800	43	37	B 125
JPDS7575B	750 X 750	950 X 950	45	37	B 125
JPDS7560B	750 X 600	950 X 950	45	37	B 125

Applications :

In residential areas, on foot paths and between heavy traffic roads
