Home » Manhole Covers And Frames » Recessed Manhole Covers And Frames » Recessed Single Seal Cover

Recessed Single Seal Cover

We offer to our clients a superior range of Recessed Single Seal Covers. They are made from premium grade material and designed exquisitely to ensure durability and quality. Our recessed single seal covers with interlock feature are available in all standard sizes at reasonable prices.

Recessed Single Seal    Recessed Single Seal


Features :
  • Manufacturing standard: BS EN 124
  • Material: S.G.Iron (Grade 500/7 as per ISO 1083)
  • High strength with low weight
  • Single seal for odour prevention
  • Sufficient recess depth for concrete infill
  • and tiles interlocking
  • Black Bitumin coated
Options :
  • Epoxy coating
  • Available as per different International standards also

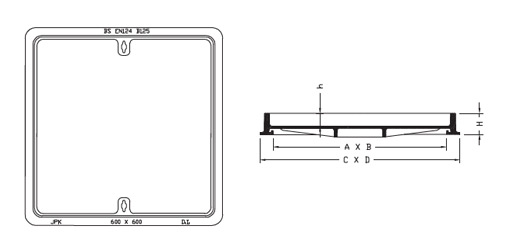

Recessed Single Seal

Product Code Clear Opening
A X B(mm)
Base Size
C X D(mm)
Depth of Frame
H(mm)
Depth of Seating
h(mm)
Class
JPRS3030B 300 X 300 415 X 415 90 65 B 125
JPRS4545B 450 X 450 565 X 565 90 65 B 125
JPRS6060B 600 X 600 715 X 715 90 65 B 125
JPRS3030C 300 X 300 415 X 415 90 65 C 250
JPRS4545C 450 X 450 565 X 565 90 65 C 250
JPRS6060C 600 X 600 715 X 715 90 65 C 250

Applications :
  • In residential areas, on foot paths and between heavy traffic roads
