Circular Manhole Cover With Square Frame

We are instrumental in providing our customers an entire range of Square Frame With Circular Cover that is widely appreciated by the clients due to their durability, reliability, dimensional accuracy and abrasion resistance. Our team of quality controllers checks and tests the entire range on several parameters to ensure that it conforms to international quality norms and standards. Further, our frames are available at industry's leading prices.

Send Enquiry

Features :

Manufacturing standard: BS EN 124
Material: S.G.Iron (Grade 500/7 as per ISO 1083)
High strength with low weight
Available with Medium and Heavy Duty
Black Bitumin coated

Options :

Epoxy coating
Customised Badging
Customised checker design
Available as per different
International standards also

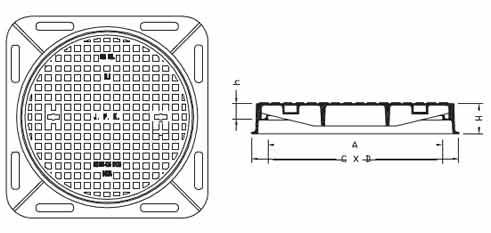

Product Code	Clear Opening A X B(mm)	Base Size C X D(mm)	Depth of Frame H(mm)	Depth of Seating h(mm)	Class
JPSQR60B	600 DIA	720 X 720	50	45	B 125
JPSQR67B	675 DIA	795 X 795	50	45	B 125
JPSQR60C	600 DIA	720 X 720	55	50	C 250
JPSQR67C	675 DIA	795 X 795	55	50	C 250
JPSQR60D	600 DIA	750 X 750	100	50	D 400
JPSQR67D	675 DIA	825 X 825	100	50	D 400

Applications :

In residential areas, on foot paths and between heavy traffic roads
